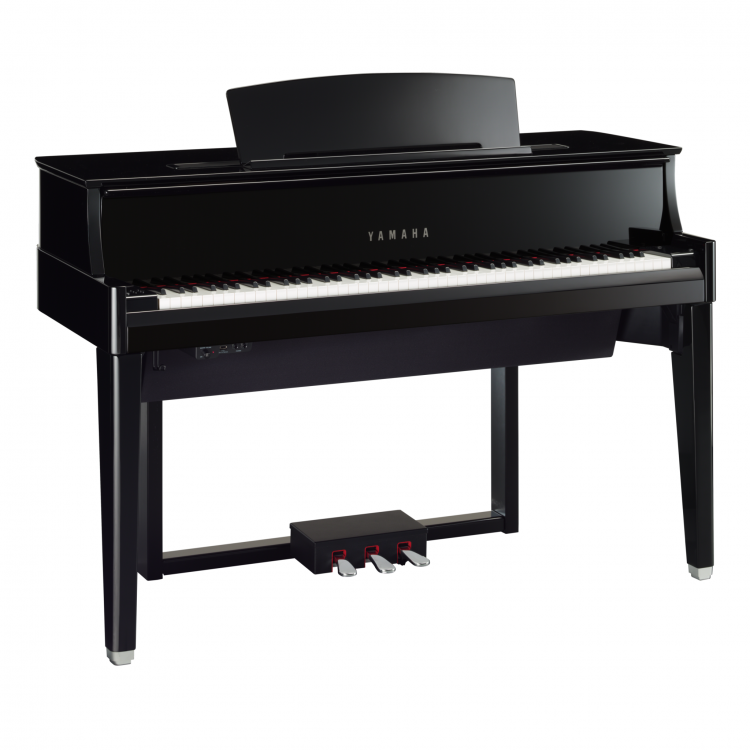

Yamaha – N1X

Available Finish: Polished Ebony

Call the closest location for more information!

About: Featuring the authentic sound and action that is consistent throughout the AvantGrand series, the N1X offers the allure of a real grand piano experience in simple, stylish package. Specialized Grand Piano Action utilizes real acoustic grand action parts and employs optical key and hammer sensors for unrivaled touch Features 4-point spatial acoustic samples of two world class concert pianos: the Yamaha CFX and the Bosendorfer Imperial AvantGrand pianos employ Yamaha’s Spatial Acoustic Speaker System – a four-point speaker configuration that allows AvantGrand pianos to deliver faithful three-dimensional recreations of the original instruments VRM recreates the experience of string resonance throughout the entire body of the instrument producing a rich reverberation that envelops the listener in sound The Smart Pianist app enables you to easily control the many functions of the instrument with your smart device

Overview:

Featuring the authentic sound and action that is consistent throughout the AvantGrand series, the N1X offers the allure of a real grand piano experience in simple, stylish package.

  • Specialized Grand Piano Action utilizes real acoustic grand action parts and employs optical key and hammer sensors for unrivaled touch
  • Features 4-point spatial acoustic samples of two world class concert pianos: the Yamaha CFX and the Bosendorfer Imperial
  • AvantGrand pianos employ Yamaha’s Spatial Acoustic Speaker System – a four-point speaker configuration that allows AvantGrand pianos to deliver faithful three-dimensional recreations of the original instruments
  • VRM recreates the experience of string resonance throughout the entire body of the instrument producing a rich reverberation that envelops the listener in sound
  • The Smart Pianist app enables you to easily control the many functions of the instrument with your smart device

N1X N3X N2 NU1X
Color/Finish
Cabinet Color Polished Ebony Polished Ebony Polished Ebony Polished Ebony/Polished Brilliant White
Finish Polished Polished Polished Polished
Size/Weight
Dimensions Width 1,465 mm (57-11/16”) 1,481 mm (58-5/16") 1,471mm (57-15/16") 1,501 mm (59-1/8")
Height 1,001 mm (39-7/16”) With music rest : 1,167 mm (45-15/16”) 1,014 mm (39-15/16") Lid up : 1,734 mm (68-1/4") 1,009mm (39-3/4")With music rest : 1,181mm (46-1/2") 1,024 mm (40-5/16")
Depth 618 mm (24-5/16”) 1,195 mm (47-1/16") 531mm (20-7/8") 463 mm (18-1/4")
Weight Weight 117 kg (257 lbs., 15 oz) 199 kg (438 lb, 12 oz) 142kg (313lbs., 1oz.) 111 kg (240 lb, 11 oz)
Control Interface
Keyboard Number of Keys 88 88 88 88
Key Surfaces - White Acrylic resin Ivorite® - Acrylic resin
Touch Sensitivity Hard/Medium/Soft/Fixed Hard/Medium/Soft/Fixed - Hard/Medium/Soft/Fixed
Keyboard Action Specialized Grand Piano Action Specialized Grand Piano Action Specialized Grand Piano Action Specialized Upright Piano Action for NU1X
Type - - Ivorite (white keytops) -
Tactile Response System (TRS) - Yes Yes -
Pedal Type GP Responsive Damper Pedal Specialized Grand Piano Pedal - GP Responsive Damper Pedal
Number of Pedals 3 3 3 3
Half Pedal Yes Yes Yes Yes
Functions Damper (with half pedal effect), Sostenuto, Soft Damper (with half-pedal effect) , Sostenuto,Soft - Damper (with half-pedal effect) , Sostenuto,Soft
Sensor/Driver Hammer Sensors Non-contact optical fiber Non-contact optical fiber - -
Key Sensors Non-contact optical fiber Non-contact optical fiber - Non-contact optical fiber
Cabinet
Key Cover Soft-Close Fallboard Yes Yes Yes Yes
Music Rest Yes Yes Yes Yes
Voices
Tone Generation Piano Sound Spatial Acoustic Sampling Spatial Acoustic Sampling - CFX/Bösendorfer Imperial Sampling
Binaural Sampling Yes (CFX Grand Voice only) Yes (CFX Grand Voice only) - Yes (CFX Grand Voice only)
Key-off Samples Yes Yes - Yes
Smooth Release Yes Yes - Yes
Virtual Resonance Modeling (VRM) Yes Yes - Yes
Tone Generating Technology - - Spatial Acoustic Sampling -
Polyphony Number of Polyphony (Max.) 256 256 256 256
Preset Number of Voices 15 10 5 15
Effects
Types Reverb Yes Yes Yes Yes
Brilliance 5 5 - -
Intelligent Acoustic Control (IAC) Yes Yes - Yes
Stereophonic Optimizer Yes Yes - Yes
Songs
Preset Number of Preset Songs 10 preset songs, 15 voice demo songs 10 preset songs, 10 voice demo songs 10 50 Classics, 15 voice demo songs
Recording Number of Songs 10 10 1 10
Number of Tracks 1 1 1 1
Data Capacity approx. 550 KB/Song approx. 550 KB/Song 300KB (approx. 30,000 notes) approx. 550 KB/Song
Recording Function Yes Yes Yes Yes
Compatible Data Format Playback SMF (Format 0, 1) SMF (Format 0, 1) - SMF (Format 0, 1)
Recording SMF (Format 0) SMF (Format 0) - SMF (Format 0)
Functions
Overall Controls Metronome Yes Yes Yes Yes
Tempo Range 5 - 500 5 - 500 5 - 500 5 - 500
Transpose -6 - 0 - +6 -6 - 0 - +6 Yes -6 - 0 - +6
Tuning 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) Yes 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
Scale Type 7 types 7 types 7 types 7 types
Audio Recorder/Player Recording Time (max.) 80 minutes/Song 80 minutes/Song - 80 minutes/Song
Recording WAV (44.1 kHz, 16 bit, stereo) WAV (44.1 kHz, 16 bit, stereo) - WAV (44.1 kHz, 16 bit, stereo)
Playback WAV (44.1 kHz, 16 bit, stereo) WAV (44.1 kHz, 16 bit, stereo) - WAV (44.1 kHz, 16 bit, stereo)
Storage and Connectivity
Storage Internal Memory approx. 1.3 MB approx. 1.4 MB - approx. 1.5 MB
External Drives USB Flash Drive USB Flash Drive - USB Flash Drive
Connectivity Headphones Standard stereo phone jack (x 2) Standard stereo phone jack (x 2) x 2 Standard stereo phone jack (x 2)
MIDI In/Out In/Out In/Out In/Out
AUX IN Stereo Mini Stereo Mini L/L+R, R Stereo Mini
AUX OUT [L/L+R] [R] (Standard stereo phone jack) [L/L+R] [R] (Standard stereo phone jack) L/L+R, R [L/L+R] [R] (Standard stereo phone jack)
OUTPUT - [L] [R] (XLR jack, balanced) - -
USB TO DEVICE Yes Yes Yes Yes
USB TO HOST Yes Yes - Yes
Power Supply
Auto Power Off Yes Yes - Yes
Power Supply AC Inlet AC Inlet AC Inlet AC Inlet
Sound System
Spatial Acoustic Speaker System Yes Yes - -
Soundboard Resonator - Yes - -
Amplifiers 30 W x 6 80 W x 2 + 45 W x 4 + 35 W x 5 + 25 W x 4 - (45 W + 45 W) x 2
Speakers 8 cm x 3 + 13 cm x 2 + 16 cm x 1 (16 cm + 13 cm + 2.5 cm) x 4 - (16 cm + 1.9 cm) x 2
Amplifiers and Speakers
Spatial Acoustic Speaker System - - Yes -
Soundboard Resonator - - Yes -
Amplifiers - - 22W x 10 + 80W x 2 -
Speakers - - (13cm + 2.5cm) x 3 + (8cm + 2.5cm) + 16cm x 2 -
