DC1XENSTPE

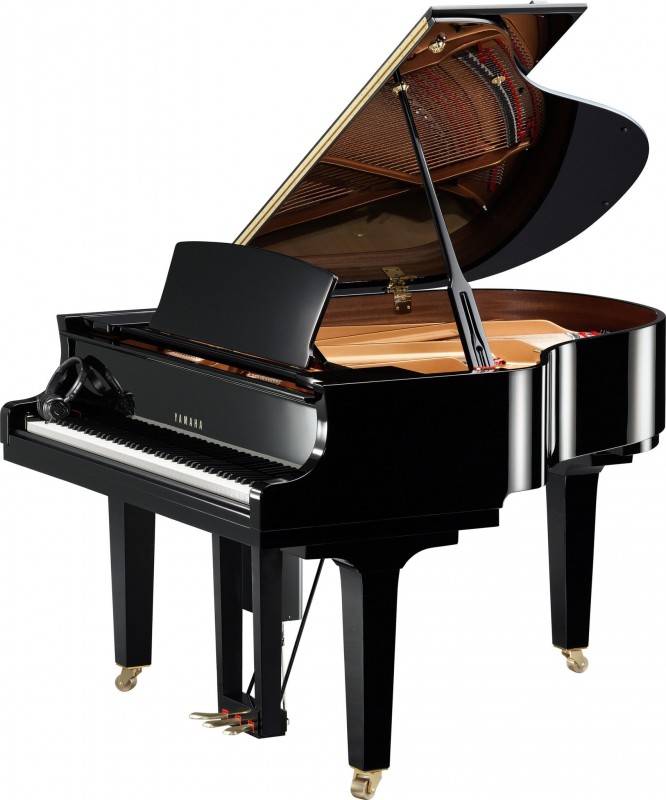

A piano of unlimited potential, the ENSPIRE ST provides full recording and playback functionality, the patented Yamaha SILENT Piano™ System and DSP Servo Drive System for users who want more from their acoustic piano. DC1X ENST consists of a grand piano C1X. This is the smallest of the Conservatory line of Yamaha pianos.

Finish: PE
Size: 5'3"
MSRP:  $ 59,499.00
Call or visit the store closest to you for more information

Specs:
DGB1K ENST DGC1 ENST DGC2 ENST DC1X ENST DC2X ENST DYUS1 ENST DU1 ENST
Size/Weight
Dimensions Width 146cm (57") 149cm (59") 149cm (59") 149cm (59") 149cm (59") 152cm (59 3/4") 153cm (60 1/4")
Height 99cm (39") 101cm (40") 101cm (40") 101cm (40") 101cm (40") 121cm (47 3/4") 121cm (47 3/4")
Depth 151cm (5') 161cm (5'3") 173cm (5'8") 161cm (5'3") 173cm (5'8") 61cm (24") 61cm (24")
Weight Weight 286kg (629lbs) 311kg (684lbs) 331kg (728lbs) 316kg (695lbs) 331kg (728lbs) 252kg (554lbs) 251kg (552lbs)
Silent System
Piano Silencing Mechanism Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper) Yes (Motor-driven hammer shank stopper)
Voices
Tone Generation Piano Sound CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling CFX Binaural Sampling / CFX Stereo Sampling
Polyphony Number of Polyphony (Max.) 256 256 256 256 256 256 256
Number of Voices (Playing) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad)
Number of Voices (Playback) 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits 480 XG Voices & 12 Drum Kits
Compatibility XG Yes Yes Yes Yes Yes Yes Yes
GM Yes Yes Yes Yes Yes Yes Yes
Songs
Number of Built-in Songs 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio)) 500 (Pop, Jazz, Classical, Smart Key etc . 380 piano solo son gs (PianoSoft Solo), 72 songs with instr umental accompanimen ts (PianoSoft Plus), and 48 songs with a udio backing (PianoS oft Audio))
Compatible Data Format SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV SMF (Standard MIDI File, Format 0 & 1), MP3, WAV
Compatible Song Format PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey
Functions
Recording Yes Yes Yes Yes Yes Yes Yes
Overall Controls Tuning 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz)
Storage and Connectivity
Connectivity Headphones Mini Stereo Jack x2 Mini Stereo Jack x2 Mini Stereo Jack x2 Mini Stereo Jack x2 Mini Stereo Jack x2 Mini Stereo Jack x2 Mini Stereo Jack x2
MIDI IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT - -
OUTPUT Yes Yes Yes Yes Yes Yes Yes
DIGITAL OUT Yes Yes Yes Yes Yes - -
USB TO DEVICE x3 x3 x3 x3 x3 x2 x2
USB TO HOST Yes Yes Yes Yes Yes Yes Yes
LAN Yes Yes Yes Yes Yes Yes Yes
OMNI (SYNC) IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
Compatible Storage Media USB Flash Memory (Optional) Yes Yes Yes Yes Yes Yes Yes
Power Supply
Power Requirements AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz AC100 V - 240 V, 50/60 Hz
Accessories
Included Accessories Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)*
Sensor/Drive
Sensor Unit Key Sensors Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity)
Pedal Sensors Damper & Shift pedal:Non-contact Optical Position-sensing System, Sostenuto pedal:ON/OFF Detection Sensing System Damper & Shift pedal:Non-contact Optical Position-sensing System, Sostenuto pedal:ON/OFF Detection Sensing System Damper & Shift pedal: Non-contact Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System Damper & Shift pedal: Non-contact Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System Damper & Shift pedal: Non-contact Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System Damper & Soft pedal:Non-contact Optical Position-sensing System Damper & Soft pedal:Non-contact Optical Position-sensing System
Hammer Sensors - Non-contact Optical Fiber/shutter Sensing System Non-contact Optical Fiber/shutter Sensing System Non-contact Optical Fiber/shutter Sensing System Non-contact Optical Fiber/shutter Sensing System Non-contact Optical Fiber/shutter Sensing System Non-contact Optical Fiber/shutter Sensing System
Drive Unit Key Drive DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback) DSP Servo Drive System (Servo-controlled solenoids, Key sensor feedback)
Pedal Drive DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids) DSP Servo Drive System (Servo-controlled solenoids)
