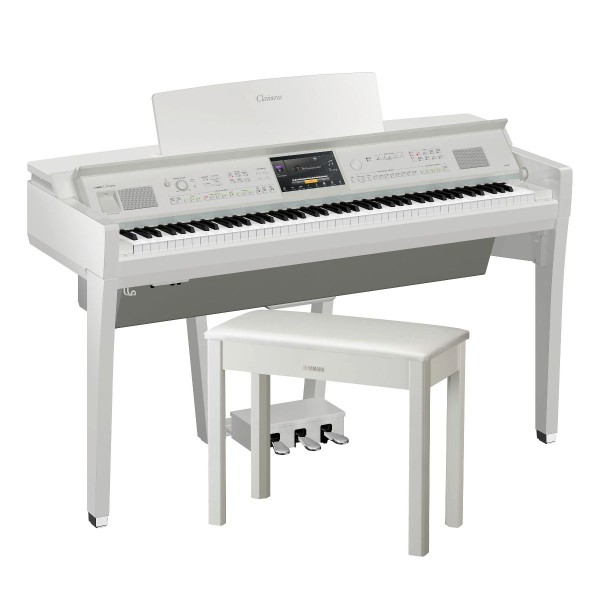

CVP-809PWH

Responsive image

Finish: PWHT

Call for availability and more info..

Retail Price: $15,999.00

About: Among the 1,605 on-board Voices in the CVP-809, there are plenty of non-piano Voices. In combination with the wide array of backing Styles, you'll be able to enjoy great-sounding performances with polished introductions and endings and authentic band and orchestra accompaniments across a wide array of genres, including jazz and pop. Play your favorite tunes as they are written, or try your hand at arranging and recording your compositions with built-in USB Audio recording.

Overview:

More Voices & Styles

Among the 1,605 on-board Voices in the CVP-805, there are plenty of non-piano Voices. In combination with the wide array of backing Styles, you’ll be able to enjoy great-sounding performances with polished introductions and endings and authentic band and orchestra accompaniments across a wide array of genres, including jazz and pop.

Play your favorite tunes as they are written, or try your hand at arranging and recording your compositions with built-in USB Audio recording.



More Voices & Styles

Among the 1,605 on-board Voices in the CVP-805, there are plenty of non-piano Voices. In combination with the wide array of backing Styles, you’ll be able to enjoy great-sounding performances with polished introductions and endings and authentic band and orchestra accompaniments across a wide array of genres, including jazz and pop.

Play your favorite tunes as they are written, or try your hand at arranging and recording your compositions with built-in USB Audio recording.

CVP-809
Size/Weight
Dimensions Width 1,426 mm (56-1/8″) (Polished finish: 1,429 mm (56-1/4″))
Height 868 mm (34-3/16″) (Polished finish: 872 mm (34-5/16″))
Depth 612 mm (24-1/8″) (Polished finish: 612 mm (24-1/8″))
Weight Weight 82 kg (180 lb, 12 oz) (Polished finish: 84 kg (185 lbs., 3 oz))
Control Interface
Keyboard Number of Keys 88
Type GrandTouch™ Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
Touch Sensitivity Hard2, Hard1, Medium, Soft1, Soft2
88-key Linear Graded Hammers Yes
Counterweight Yes
Pedal Number of Pedals 3
Half Pedal Yes
Functions Sustain, Sostenuto, Soft, Glide, Song Play/Pause, Style Start/Stop, Volume, etc.
GP Response Damper Pedal Yes
Display Type TFT Color LCD
Size 9.0 inch (800 x 480 dots)
LCD Brightness Yes
Touch Screen Yes
Color Yes
Score Display Function Yes
Lyrics Display Function Yes
Text Viewer Function Yes
Language English, Japanese, German, French, Spanish, Italian
Panel Language English only
Cabinet
Key Cover Key Cover Style Folding
Music Rest Yes
Music Clips Yes
Voices
Tone Generation Piano Sound Yamaha CFX, Bösendorfer Imperial
Binaural Sampling Yes (CFX Grand Voice only)
Key-off Samples Yes
Smooth Release Yes
Virtual Resonance Modeling (VRM) Yes
Polyphony Number of Polyphony (Max.) 256
Preset Number of Voices 1,605 Voices + 58 Drum/SFX Kits + 480 XG Voices
Featured Voices 17 VRM Voices, 36 Super Articulation2 Voices, 301 Super Articulation Voices
Custom Voice Edit Yes
Compatibility XG, GS (for Song playback), GM, GM2
Effects
Types Reverb 65 Preset ＋ 30 User
Chorus 107 Preset ＋ 30 User
Master Compressor 5 Preset ＋ 30 User
Master EQ 5 Preset ＋ 30 User
Part EQ 27 Parts
Intelligent Acoustic Control (IAC) Yes
Stereophonic Optimizer Yes
Insertion Effect 358 Preset ＋ 30 User
Variation Effect 358 Preset ＋ 30 User
Vocal Harmony 54 Preset ＋60 User
Functions Dual/Layers Yes
Split Yes
Accompaniment Styles
Preset Number of Preset Styles 675
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Custom Style Creator Yes
Other Features Music Finder –
One Touch Setting (OTS) 4 for each Style
Style Recommender –
Chord Looper Yes
File Format Style File Format (SFF), Style File Format GE (SFF GE)
Songs
Preset Number of Preset Songs 50 Classics + 303 Lesson Songs + 50 Popular
Recording Number of Tracks 16
Data Capacity approx. 3 MB / Song
Recording Function Yes
Compatible Data Format Playback SMF (Format 0 & 1), XF
Recording SMF (Format 0)
Functions
Demo Yes
Registration Number of Buttons 8
Control Registration Sequence, Freeze
Playlist Number of Records 2,500 Records
Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo
Guide Lamp Yes
Performance Assistant Technology (PAT) Yes
Piano Room Yes
USB Audio Recorder Playback WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
Recording WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
USB Audio Time Stretch Yes
Pitch Shift Yes
Vocal Cancel Yes
Miscellaneous Metronome Yes
Tempo Range 5 – 500, Tap Tempo
Transpose -12 – 0 – +12
Tuning 414.8 – 440 – 466.8 Hz (approx. 0.2 Hz increments)
Scale Type 9
Display Out Yes (by using a commercially available USB display adaptor)
Bluetooth Yes (Audio)
Storage and Connectivity
Storage Internal Memory approx. 2 GB
External Drives USB Flash Drive
Connectivity Headphones Standard stereo phone jack (×2)
Microphone Input Volume, Mic / Line In
MIDI IN / OUT / THRU
AUX IN Stereo mini
AUX OUT L / L + R, R
AUX Pedal Yes
USB TO DEVICE Yes (x 2)
USB TO HOST Yes
Amplifiers and Speakers
Amplifiers (40W + 30W + 20W) × 2 + 80W
Speakers (16 cm + 5 cm + 2.5 cm (dome)) × 2 + 20 cm, Spruce Cone Speaker, Twisted Flare Port
Power Supply
Power Consumption Power consumption is described on or near the name plate, which is at the bottom of the unit.
Accessories
Accessories Headphones (HPH-150/HPH-100/HPH-50), Footswitches (FC4A/FC5), Foot controller (FC7), USB wireless LAN adaptor (UD-WL01), Wireless MIDI adaptor (MD-BT01/UD-BT01)

Improved From Previous Model:
CVP-709

  • 9″ TFT Color Touch Screen (vs. 8.5″)
  • Grand Touch with wooden keys (vs NWX keyboard action)
  • Binaural CFX Sampling
  • Bluetooth audio
  • 1605 Voices + 58 Drum/SFX Kits (vs. 1270 Voices + 37 Drum/SFX Kits)
  • 675 styles (vs 600)
  • Chord Looper
  • Playlist (vs. Music Finder Database)
  • Smart Pianist (Audio to Score) compatibility
  • (40W + 30W + 20W) x 2 +80W vs. (30W+30W+20W) x 2 + 40W Amplifiers
  • USB to HOST audio/MIDI interface
  • USB Display Output (HDMI) vs. RGB display output
  • Music Rest with music clips (vs. no music clips)



Step Ups From Lower Model:
CVP-805

  • Key Counter Weights
  • GP Response damper pedal
  • 9 inch TFT Color LCD (vs 7-inch)
  • 1,605 Voices, 58 Drum/SFX Kits, 480 XG Voices(1,315 Voices,49 Drum/SFX Kits, 480 XG Voices)
  • Super Articulation 2 Voices
  • 17 VRM voices (vs 14)
  • 675 Styles (vs. 525)
  • (40W+30W+20W) x 2 + 80W Amplifiers vs. (45W + 20W) x2
  • Spruce Cone Speakers
  • (16cm + 5cm +2.5cm) x2 +20cm speaker system vs. (16cm + 2.5cm) x2
  • Twisted Flare port



Step Ups To Higher Model:
CVP-809GP

  • Grand Piano cabinet design
